SF₆ field observations in Hvalfjörður
This notebook analyzes the SF₆ (sulfur hexafluoride) tracer observations collected during the July 2024 field trial in Hvalfjörður. SF₆ was released as a passive tracer analogue to study the dispersion and transport in Hvalfjörður
Data loading: Import the combined SF₆, hydrography, and navigation dataset from Excel and convert to an
xarray.Datasetindexed by date and observation number.Spatial visualization: Create daily maps showing log-scaled SF₆ concentrations over Hvalfjörður using Cartopy, with land mask overlays for geographic context.
Longitudinal analysis: Bin observations by longitude and compute daily binned-averaged SF₆ profiles to track plume evolution along the fjord axis.
Plume diagnostics: Calculate mass-weighted median plume positions for each day to quantify advection and dispersion rates.
The results from this notebook provide the observational baseline for comparison with ROMS passive dye simulations in SF6_model-Copy1.ipynb.
import subprocess
import os
import pandas as pd
import netCDF4
import numpy as np
import glob
import time
import matplotlib.pyplot as plt
import copy
import xarray as xr
from datetime import datetime, timedelta
import dask
from scipy.interpolate import griddata
import sys
import os
#from ocean_c_lab_tools import *
#from celluloid import Camera
#import PyCO2SYS as csys
import seawater as sw
# Add parent directory to Python path
sys.path.append(os.path.abspath(".."))
from roms_regrid import *
/tmp/ipykernel_1809283/364183871.py:19: UserWarning: The seawater library is deprecated! Please use gsw instead.
import seawater as sw
xls = pd.ExcelFile('../../data/20241119_combined_data.xlsx')
combo = pd.read_excel(xls, '20241119_combined_data',decimal='.')
combo
Loading...
obs=xr.Dataset.from_dataframe(combo)
obs=obs.set_index(index=['Date','Obs_no'])
#obs=obs.drop_duplicates('index')
obs=obs.unstack('index')
#obs=obs.rename(name_dict={'mon/day/yr':'time','Depth':'depth','Latitude(°N)':'lat','Longitude(°E)':'lon'})
grid=xr.open_mfdataset('/anvil/projects/x-ees250129/x-uheede/MATLAB/setup_r2r_phys+bgc/1.Make_grid/Iceland3_grid_MAT.nc')
mask=roms_regrid(grid,grid['mask_rho'])
grid
Loading...
import numpy as np
def get_daily_locations(obs_ds):
dates = obs_ds['Date'].values
num_days = len(dates)
num_obs = obs_ds.dims['Obs_no']
# Initialize empty array: (days, obs, 2)
locations = np.empty((num_days, num_obs, 2))
for i in range(0,num_days):
lat = obs_ds['Lat'].isel(Date=i).values
lon = obs_ds['Long'].isel(Date=i).values + 360 # convert to 0–360 range
locations[i, :, 0] = lat
locations[i, :, 1] = lon
return locations
# Example usage
locations_array = get_daily_locations(obs)
print("Shape of locations array:", locations_array.shape) # should be (9, 2729, 2)
Shape of locations array: (9, 2729, 2)
/tmp/ipykernel_1809283/1794326622.py:6: FutureWarning: The return type of `Dataset.dims` will be changed to return a set of dimension names in future, in order to be more consistent with `DataArray.dims`. To access a mapping from dimension names to lengths, please use `Dataset.sizes`.
num_obs = obs_ds.dims['Obs_no']
from matplotlib.colors import LogNorm
import cartopy.crs as ccrs
from cartopy.mpl.gridliner import LONGITUDE_FORMATTER, LATITUDE_FORMATTER
figures = [
{'days': [0, 1]}, # Figure 1: Days 1–2
{'days': [2, 3]}, # Figure 2: Days 3–4
{'days': [4, 5]}, # Figure 3: Days 5–6
{'days': [6]}, # Figure 4: Day 7
]
for fig_idx, group in enumerate(figures):
nrows = len(group['days'])
fig, axs = plt.subplots(nrows=nrows, figsize=(6, 2.5 * nrows), dpi=200,
subplot_kw={'projection': ccrs.Mercator()})
if nrows == 1:
axs = [axs] # make iterable
for ax, day in zip(axs, group['days']):
obs_day=obs['SF6 (fmol/L)'].isel(Date=day).values
obs_lat=obs['Lat'].isel(Date=day).values
obs_lon=obs['Long'].isel(Date=day).values
obs_clear = obs_day[~np.isnan(obs_day)]
obs_lat = obs_lat[~np.isnan(obs_lat)]
obs_lon = obs_lon[~np.isnan(obs_lon)]
ax.contourf(mask.lon, mask.lat, mask.load(), transform=ccrs.PlateCarree(), cmap='bone')
scatter = ax.scatter(obs_lat, obs_lon, c=obs_clear, cmap='jet', edgecolor='none',
transform=ccrs.PlateCarree(), s=5,
norm=LogNorm(vmin=1e-1, vmax=5e4))
gl = ax.gridlines(crs=ccrs.PlateCarree(), draw_labels=True,
linewidth=1, color='gray', alpha=0.5, linestyle='--')
gl.top_labels = False
gl.right_labels = False
gl.xlines = False
gl.ylines = False
gl.xformatter = LONGITUDE_FORMATTER
gl.yformatter = LATITUDE_FORMATTER
ax.set_title(f'Day {day+1}: Avg SF6 over 24 hrs', fontsize=8)
# Get the bounding box of the mask
lon_min = float(mask.lon.min())
lon_max = float(mask.lon.max())
lat_min = float(mask.lat.min())
lat_max = float(mask.lat.max())
# Set map extent to match mask
ax.set_extent([lon_min, lon_max, lat_min, lat_max], crs=ccrs.PlateCarree())
# Colorbar
#cbar = ax.colorbar(scatter, ax=axs, orientation='vertical', shrink=0.5, pad=0.05)
#cbar.set_label('SF6 (fmol/L)')
plt.tight_layout()
plt.show()
from matplotlib.colors import LogNorm
import cartopy.crs as ccrs
from cartopy.mpl.gridliner import LONGITUDE_FORMATTER, LATITUDE_FORMATTER
import matplotlib.pyplot as plt
figures = [
{'days': [0, 1]}, # Figure 1: Days 1–2
{'days': [2, 3]}, # Figure 2: Days 3–4
{'days': [4, 5]}, # Figure 3: Days 5–6
{'days': [6]}, # Figure 4: Day 7
]
for fig_idx, group in enumerate(figures):
nrows = len(group['days'])
fig, axs = plt.subplots(nrows=nrows, figsize=(6, 2.5 * nrows), dpi=200,
subplot_kw={'projection': ccrs.Mercator()})
if nrows == 1:
axs = [axs] # Make iterable if only one subplot
for ax, day in zip(axs, group['days']):
# Extract observation values
obs_day = obs['SF6 (fmol/L)'].isel(Date=day).values
obs_lat = obs['Lat'].isel(Date=day).values
obs_lon = obs['Long'].isel(Date=day).values
# Remove NaNs
mask_valid = ~np.isnan(obs_day)
obs_clear = obs_day[mask_valid]
obs_lat = obs_lat[mask_valid]
obs_lon = obs_lon[mask_valid]
# Plot the land mask
ax.contourf(mask.lon, mask.lat, mask.load(), transform=ccrs.PlateCarree(), cmap='bone')
# Plot the observations as scatter points
scatter = ax.scatter(obs_lon, obs_lat, c=obs_clear, cmap='jet', edgecolor='none',
transform=ccrs.PlateCarree(), s=5,
norm=LogNorm(vmin=1e-1, vmax=5e4))
# Set map extent to match mask
lon_min = float(mask.lon.min())
lon_max = float(mask.lon.max())
lat_min = float(mask.lat.min())
lat_max = float(mask.lat.max())
ax.set_extent([lon_min, lon_max, lat_min, lat_max], crs=ccrs.PlateCarree())
# Add gridlines
gl = ax.gridlines(crs=ccrs.PlateCarree(), draw_labels=True,
linewidth=1, color='gray', alpha=0.5, linestyle='--')
gl.top_labels = False
gl.right_labels = False
gl.xlines = False
gl.ylines = False
gl.xformatter = LONGITUDE_FORMATTER
gl.yformatter = LATITUDE_FORMATTER
# Title

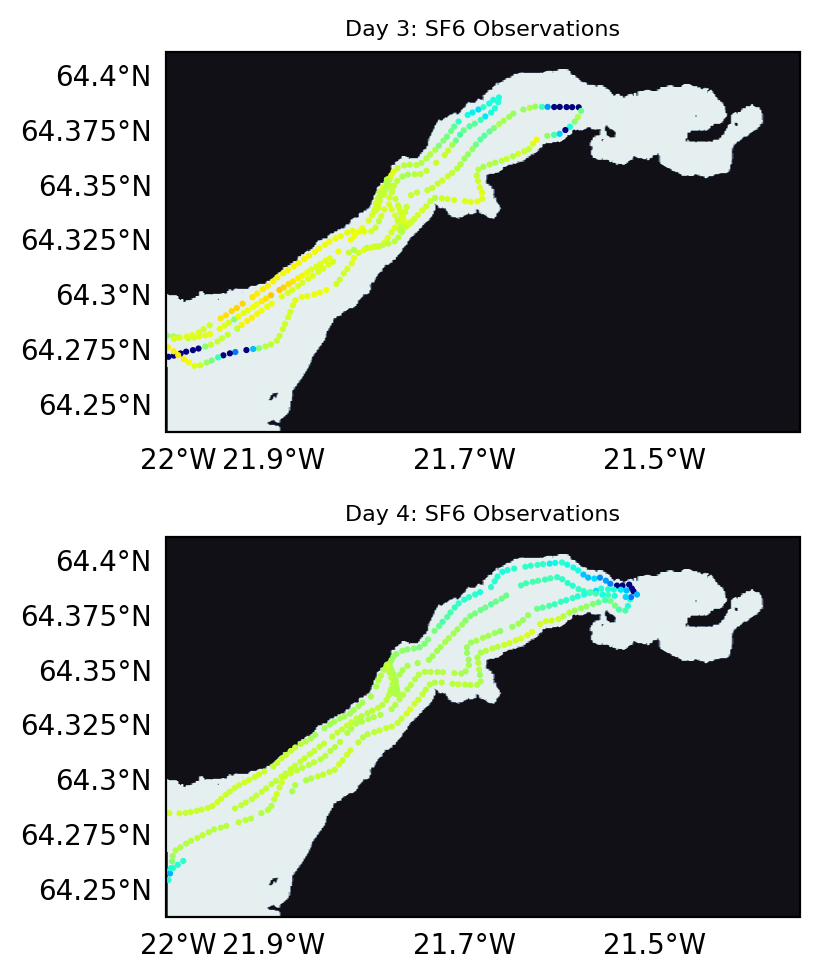

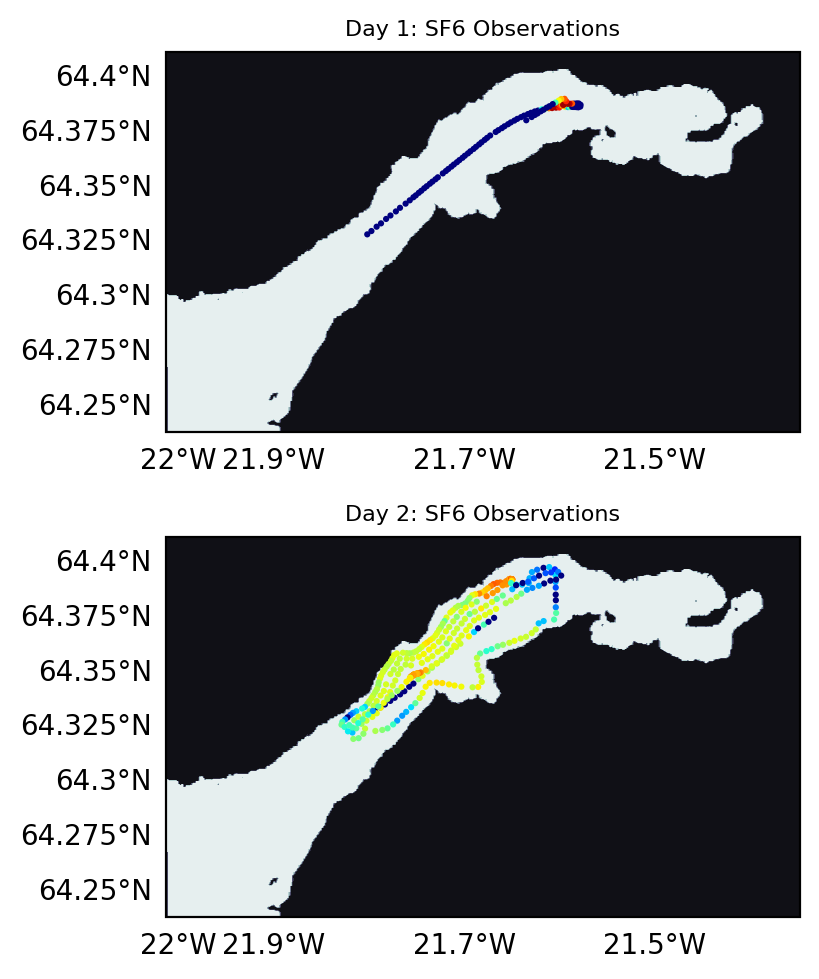

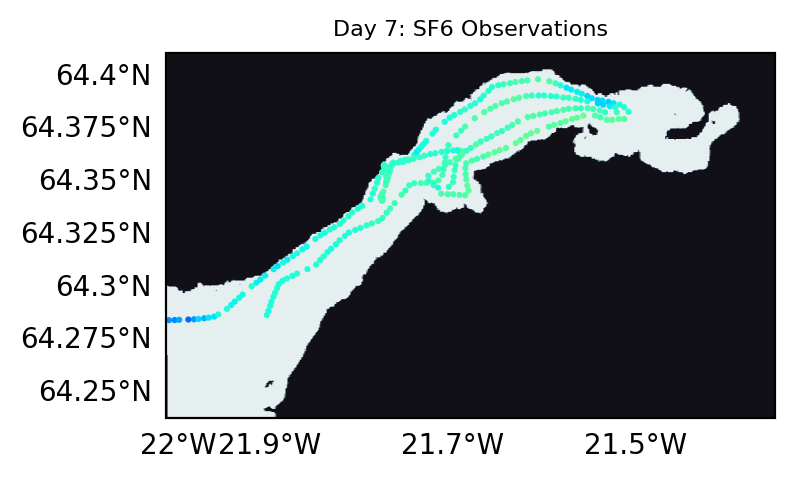

ax.set_title(f'Day {day+1}: SF6 Observations', fontsize=8)
# Optional colorbar for each figure (shared across subplots)
# cbar = fig.colorbar(scatter, ax=axs, orientation='vertical', shrink=0.6, pad=0.05)
# cbar.set_label('SF6 (fmol/L)')
plt.tight_layout()
plt.show()
import numpy as np
import matplotlib.pyplot as plt
import cartopy.crs as ccrs
from matplotlib.colors import LogNorm
from cartopy.mpl.gridliner import LONGITUDE_FORMATTER, LATITUDE_FORMATTER

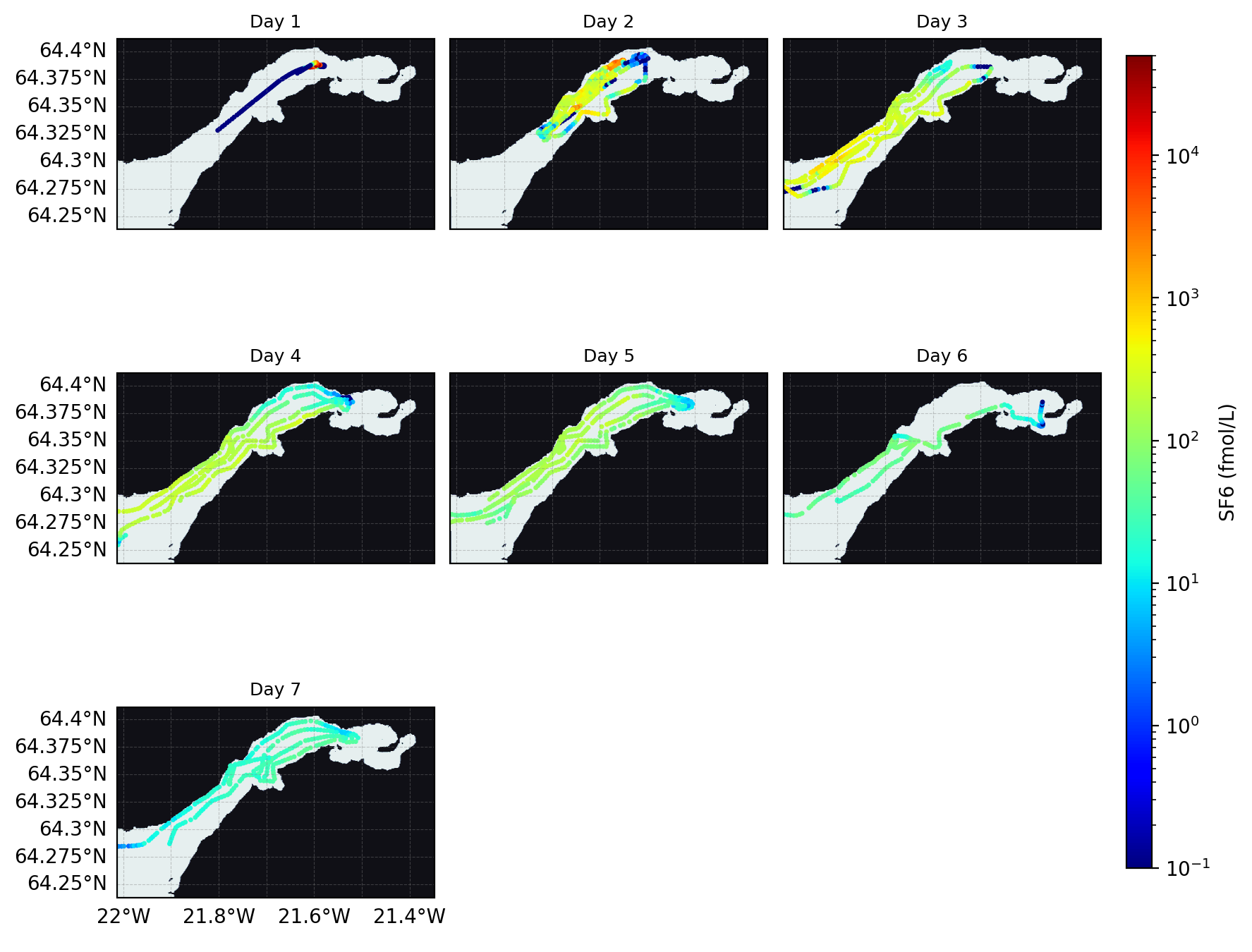

days = list(range(7))
fig, axs = plt.subplots(
nrows=3, ncols=3,
figsize=(9, 9),
dpi=200,
subplot_kw={'projection': ccrs.Mercator()},
gridspec_kw={'wspace': 0.05, 'hspace': 0.08} # tighter spacing
)
axs = axs.flatten()
lon_min = float(mask.lon.min())
lon_max = float(mask.lon.max())
lat_min = float(mask.lat.min())
lat_max = float(mask.lat.max())
for i, day in enumerate(days):
ax = axs[i]
obs_day = obs['SF6 (fmol/L)'].isel(Date=day).values
obs_lat = obs['Lat'].isel(Date=day).values
obs_lon = obs['Long'].isel(Date=day).values
mask_valid = ~np.isnan(obs_day)
obs_clear = obs_day[mask_valid]
obs_lat = obs_lat[mask_valid]
obs_lon = obs_lon[mask_valid]
ax.contourf(mask.lon, mask.lat, mask.load(),
transform=ccrs.PlateCarree(), cmap='bone')
scatter = ax.scatter(
obs_lon, obs_lat,
c=obs_clear,
cmap='jet',
edgecolor='none',
s=6,
transform=ccrs.PlateCarree(),
norm=LogNorm(vmin=1e-1, vmax=5e4)
)
ax.set_extent([lon_min, lon_max, lat_min, lat_max],
crs=ccrs.PlateCarree())
gl = ax.gridlines(draw_labels=False,
linewidth=0.4,
color='gray',
alpha=0.4,
linestyle='--')
if i % 3 == 0:
gl.left_labels = True
gl.yformatter = LATITUDE_FORMATTER
if i >= 6:
gl.bottom_labels = True
gl.xformatter = LONGITUDE_FORMATTER
ax.set_title(f'Day {day+1}', fontsize=9)
# Turn off unused panels
for j in range(len(days), 9):
axs[j].axis('off')
# -----------------------
# Dedicated colorbar axis
# -----------------------
cax = fig.add_axes([0.92, 0.18, 0.02, 0.64]) # [left, bottom, width, height]
cbar = fig.colorbar(scatter, cax=cax)
cbar.set_label('SF6 (fmol/L)')
plt.show()
for fig_idx, group in enumerate(figures):
nrows = len(group['days'])
fig, axs = plt.subplots(nrows=nrows, figsize=(6, 2.5 * nrows), dpi=200,
subplot_kw={'projection': ccrs.Mercator()})
if nrows == 1:
axs = [axs]
all_scatters = []
for ax, day in zip(axs, group['days']):
obs_day = obs['SF6 (fmol/L)'].isel(Date=day).values
obs_lat = obs['Lat'].isel(Date=day).values
obs_lon = obs['Long'].isel(Date=day).values
mask_valid = ~np.isnan(obs_day)
obs_clear = obs_day[mask_valid]
obs_lat = obs_lat[mask_valid]
obs_lon = obs_lon[mask_valid]
ax.contourf(mask.lon, mask.lat, mask.load(), transform=ccrs.PlateCarree(), cmap='bone')
scatter = ax.scatter(obs_lon, obs_lat, c=obs_clear, cmap='jet', edgecolor='none',
transform=ccrs.PlateCarree(), s=5,
norm=LogNorm(vmin=1e-1, vmax=5e4))
all_scatters.append(scatter)
lon_min = float(mask.lon.min())
lon_max = float(mask.lon.max())
lat_min = float(mask.lat.min())
lat_max = float(mask.lat.max())
ax.set_extent([lon_min, lon_max, lat_min, lat_max], crs=ccrs.PlateCarree())
gl = ax.gridlines(crs=ccrs.PlateCarree(), draw_labels=True,
linewidth=1, color='gray', alpha=0.5, linestyle='--')
gl.top_labels = False
gl.right_labels = False
gl.xlines = False
gl.ylines = False
gl.xformatter = LONGITUDE_FORMATTER
gl.yformatter = LATITUDE_FORMATTER
ax.set_title(f'Day {day+1}: SF6 Observations', fontsize=8)
# Optional: add shared colorbar
#cbar = fig.colorbar(all_scatters[0], ax=axs, orientation='vertical', shrink=0.6, pad=0.05)
#cbar.set_label('SF6 (fmol/L)')
plt.tight_layout()
plt.savefig(f'sf6_obs_group_{fig_idx+1}.png', dpi=300, bbox_inches='tight')
plt.show()
import matplotlib.pyplot as plt
import numpy as np
import xarray as xr
num_days = 7
# Precompute the mask
mask = roms_regrid(grid, grid['mask_rho'])
# Set up plotting
plt.figure(figsize=(10, 5), dpi=300)
vmin, vmax = 1e-1, 5e4
for day in range(num_days):
obs_day = obs['SF6 (fmol/L)'].isel(Date=day).values
obs_lat = obs['Lat'].isel(Date=day).values
obs_lon = obs['Long'].isel(Date=day).values
mask_valid = ~np.isnan(obs_day)
obs_clear = obs_day[mask_valid]
obs_lat = obs_lat[mask_valid]
obs_lon = obs_lon[mask_valid]
# Convert to numpy arrays and sort by longitude
lons = np.array(obs_lon)+360
dye_values = np.array(obs_clear)
sort_idx = np.argsort(lons)
lons_sorted = lons[sort_idx]
dye_sorted = dye_values[sort_idx]
# Plot
plt.plot(lons_sorted, dye_sorted, label=f'Day {day + 1}')
# Final plot formatting
#plt.yscale('log')
plt.xlabel('Longitude')
plt.ylabel('SF6 (fmol/L)')

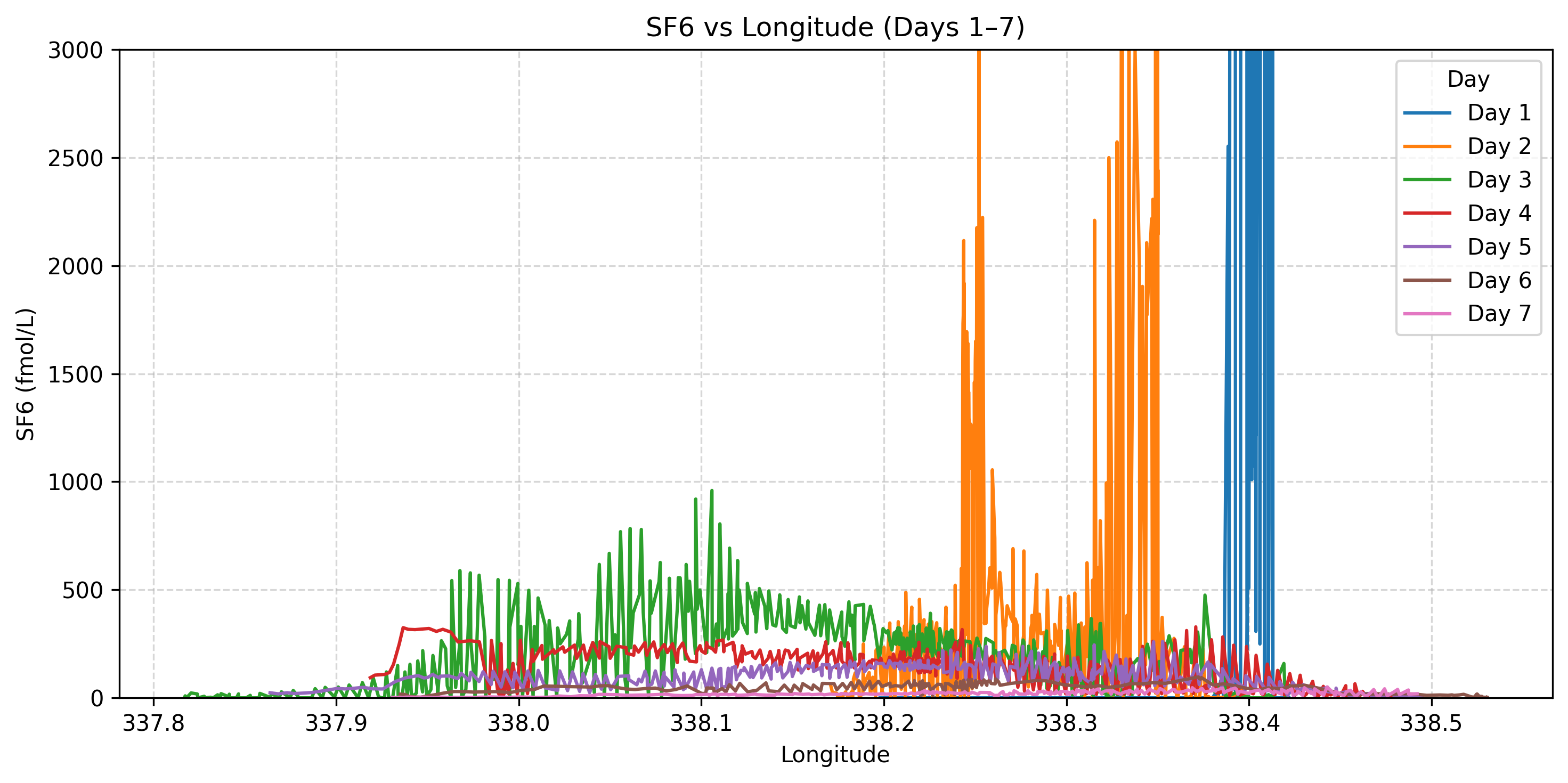

plt.title('SF6 vs Longitude (Days 1–7)')
plt.legend(title='Day')
plt.grid(True, which='both', linestyle='--', alpha=0.5)
plt.tight_layout()
plt.ylim([0,3000])
plt.show()
import matplotlib.pyplot as plt
import numpy as np
import xarray as xr

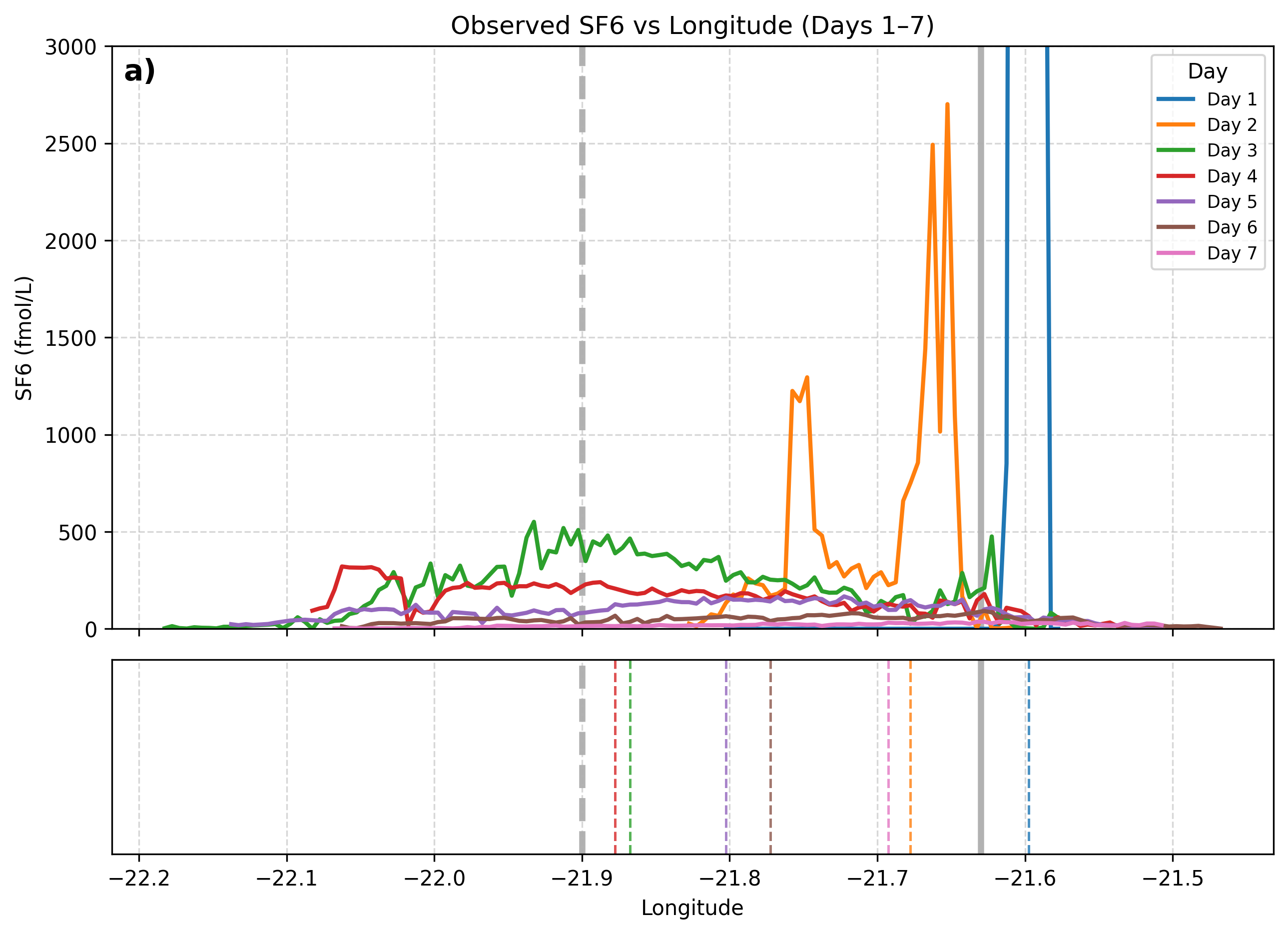

mouth_lon=-21.9
num_days = 7
# Precompute the mask
mask = roms_regrid(grid, grid['mask_rho'])
# Set up plotting
plt.figure(figsize=(10, 5), dpi=300)
vmin, vmax = 1e-1, 5e4
bin_width = 0.005 # degrees

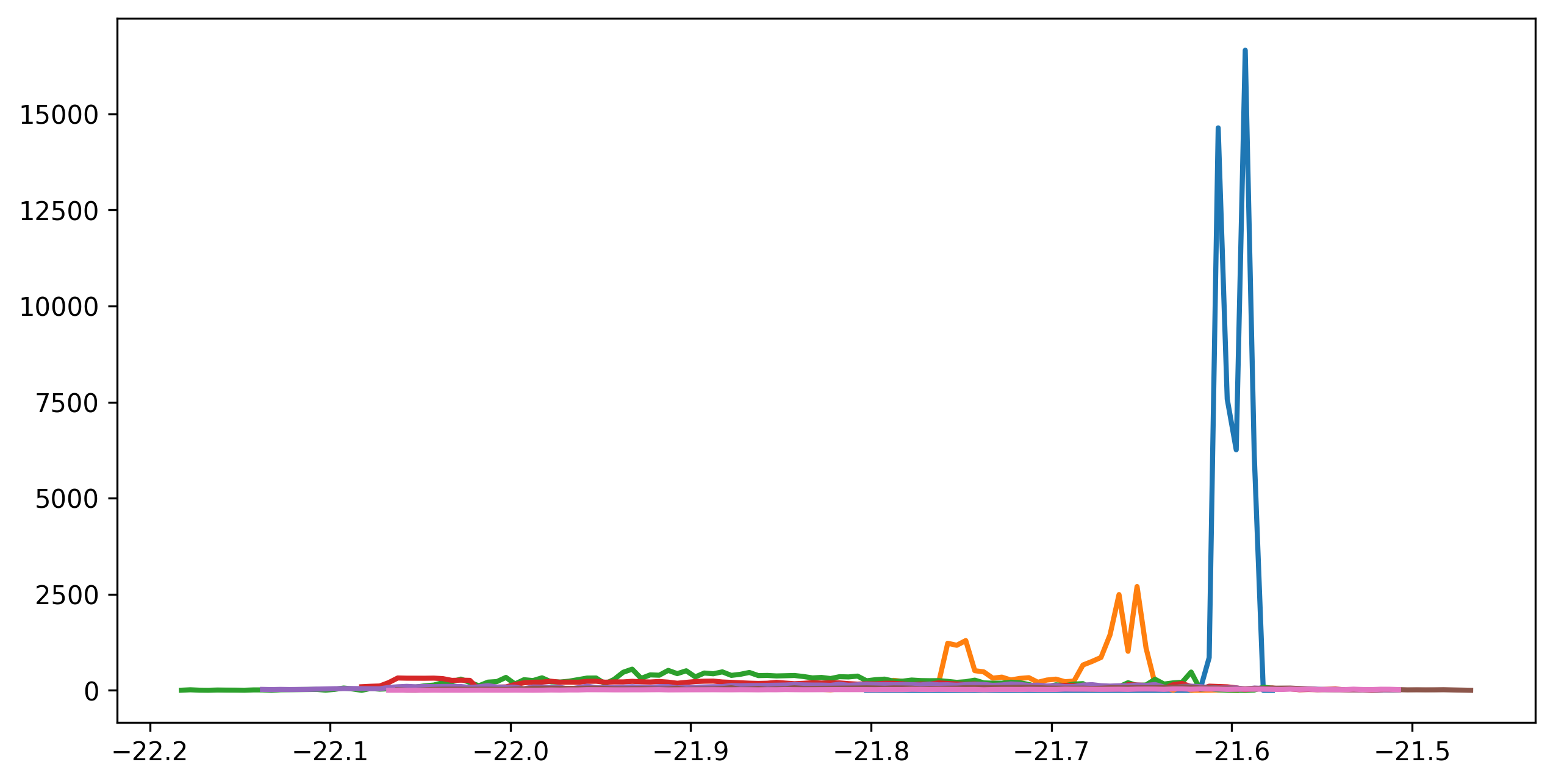

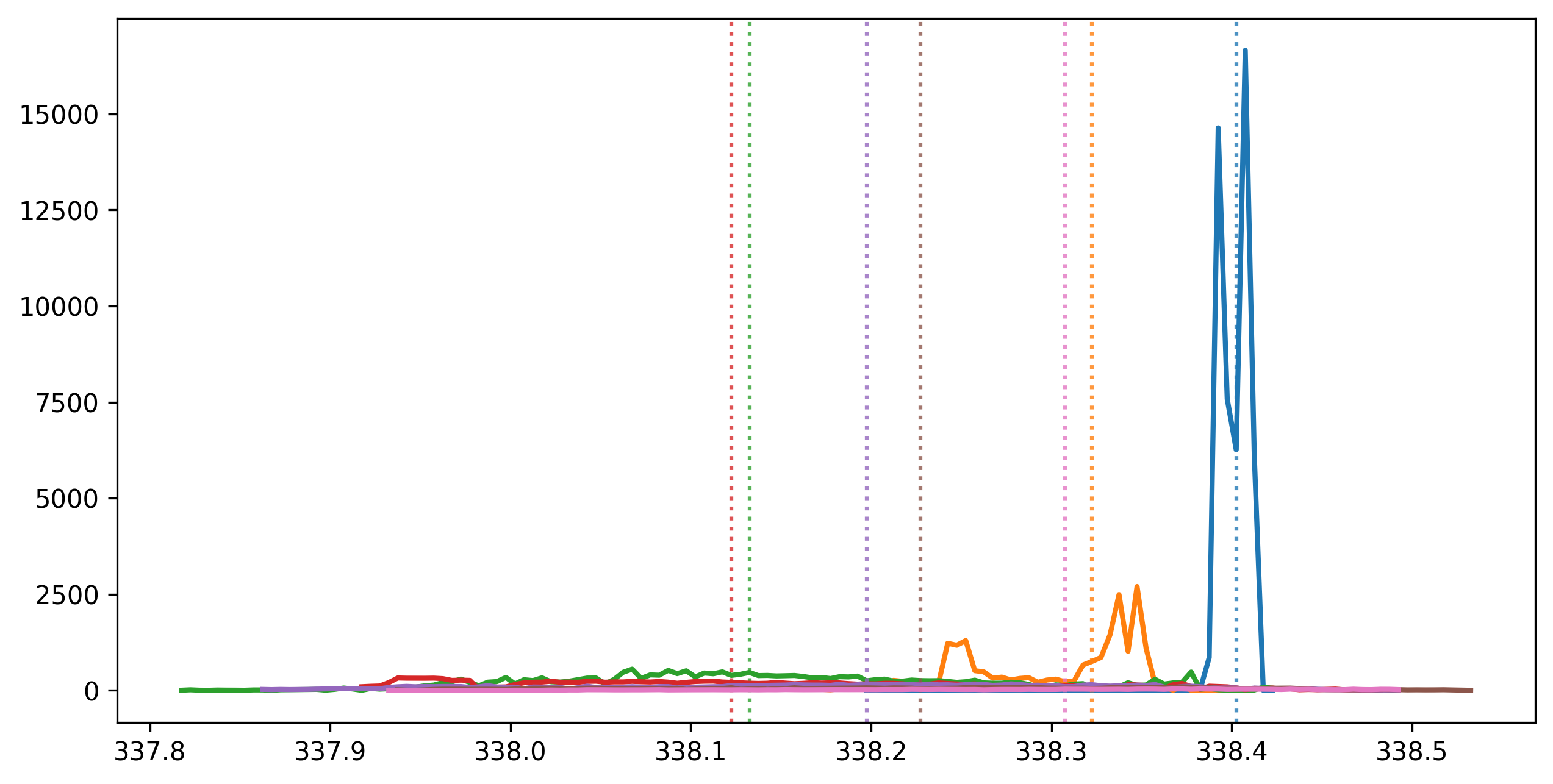

for day in range(num_days):
obs_day = obs['SF6 (fmol/L)'].isel(Date=day).values
obs_lat = obs['Lat'].isel(Date=day).values
obs_lon = obs['Long'].isel(Date=day).values
# -----------------------
# Clean NaNs
# -----------------------
mask_valid = ~np.isnan(obs_day)
obs_clear = obs_day[mask_valid]
obs_lon = obs_lon[mask_valid] + 360 # convert to 0–360
lons = np.array(obs_lon)-360
dye_values = np.array(obs_clear)
# -----------------------
# Define longitude bins
# -----------------------
lon_min = np.floor(lons.min() / bin_width) * bin_width
lon_max = np.ceil(lons.max() / bin_width) * bin_width
bins = np.arange(lon_min, lon_max + bin_width, bin_width)
bin_centers = 0.5 * (bins[:-1] + bins[1:])
# Assign points to bins
bin_idx = np.digitize(lons, bins) - 1
# -----------------------
# Bin-averaged SF6
# -----------------------
dye_binned = np.full(len(bin_centers), np.nan)
for i in range(len(bin_centers)):
in_bin = bin_idx == i
if np.any(in_bin):
dye_binned[i] = np.nanmean(dye_values[in_bin])
# -----------------------
# Plot continuous line
# -----------------------
valid = np.isfinite(dye_binned)
plt.plot(
bin_centers[valid],
dye_binned[valid],
'-',
linewidth=2,
label=f'Day {day + 1}'
)
for ax in [ax1, ax2]:
ax.axvline(mouth_lon, color='grey', linewidth=3, alpha=0.6, zorder=0)
# Final plot formatting
#plt.yscale('log')
plt.xlabel('Longitude')
plt.ylabel('SF6 (fmol/L)')
plt.title('SF6 vs Longitude (Days 1–7)')
plt.legend(title='Day')
plt.grid(True, which='both', linestyle='--', alpha=0.5)
plt.tight_layout()
plt.ylim([0,3000])
plt.show()
---------------------------------------------------------------------------
NameError Traceback (most recent call last)
Cell In[12], line 70
60 valid = np.isfinite(dye_binned)
62 plt.plot(
63 bin_centers[valid],
64 dye_binned[valid],
(...) 67 label=f'Day {day + 1}'
68 )
---> 70 for ax in [ax1, ax2]:
71 ax.axvline(mouth_lon, color='grey', linewidth=3, alpha=0.6, zorder=0)
73 # Final plot formatting
74 #plt.yscale('log')
NameError: name 'ax1' is not defined
import matplotlib.pyplot as plt
import numpy as np
import xarray as xr
num_days = 7
# Set up plotting
plt.figure(figsize=(10, 5), dpi=300)
bin_width = 0.005 # degrees
for day in range(num_days):
obs_day = obs['SF6 (fmol/L)'].isel(Date=day).values
obs_lat = obs['Lat'].isel(Date=day).values
obs_lon = obs['Long'].isel(Date=day).values
# -----------------------
# Remove NaNs
# -----------------------
mask_valid = ~np.isnan(obs_day)
obs_clear = obs_day[mask_valid]
obs_lon = obs_lon[mask_valid] + 360 # convert to 0–360
lons = np.array(obs_lon)
dye_values = np.array(obs_clear)
if len(lons) == 0:
continue
# -----------------------
# Define longitude bins
# -----------------------
lon_min = np.floor(lons.min() / bin_width) * bin_width
lon_max = np.ceil(lons.max() / bin_width) * bin_width
bins = np.arange(lon_min, lon_max + bin_width, bin_width)
bin_centers = 0.5 * (bins[:-1] + bins[1:])
bin_idx = np.digitize(lons, bins) - 1
# -----------------------
# Bin-averaged SF6
# -----------------------
dye_binned = np.full(len(bin_centers), np.nan)
for i in range(len(bin_centers)):
in_bin = bin_idx == i
if np.any(in_bin):
dye_binned[i] = np.nanmean(dye_values[in_bin])
valid = np.isfinite(dye_binned)
lon_valid = bin_centers[valid]
dye_valid = dye_binned[valid]
if len(lon_valid) == 0:
continue
# -----------------------
# Compute mass-weighted median longitude
# -----------------------
weights = dye_valid
sort_idx = np.argsort(lon_valid)
lon_sorted = lon_valid[sort_idx]
w_sorted = weights[sort_idx]
cumsum = np.cumsum(w_sorted)
total = cumsum[-1]
lon_median = lon_sorted[np.searchsorted(cumsum, 0.5 * total)]
# -----------------------
# Plot line and median
# -----------------------
line, = plt.plot(
lon_valid,
dye_valid,
'-',
linewidth=2,
label=f'Day {day + 1}'
)
color = line.get_color()
plt.axvline(
lon_median,
linestyle=':',
linewidth=1.5,
color=color,
alpha=0.8
)
import matplotlib.pyplot as plt
import numpy as np
import xarray as xr
num_days = 7
bin_width = 0.005 # degrees
mouth_lon=-21.9
inj_lon=-21.63
# --- Set up Two-Panel Plotting ---
# sharex=True ensures both plots align perfectly on the longitude axis
fig, (ax1, ax2) = plt.subplots(nrows=2, ncols=1, figsize=(10, 7), dpi=300,
sharex=True, gridspec_kw={'height_ratios': [3, 1]})
for day in range(num_days):
obs_day = obs['SF6 (fmol/L)'].isel(Date=day).values
obs_lat = obs['Lat'].isel(Date=day).values
obs_lon = obs['Long'].isel(Date=day).values
# -----------------------
# Remove NaNs
# -----------------------
mask_valid = ~np.isnan(obs_day)
obs_clear = obs_day[mask_valid]
obs_lon = obs_lon[mask_valid] + 360 # convert to 0–360
lons = np.array(obs_lon)-360
dye_values = np.array(obs_clear)
if len(lons) == 0:
continue
# -----------------------
# Define longitude bins
# -----------------------
lon_min = np.floor(lons.min() / bin_width) * bin_width
lon_max = np.ceil(lons.max() / bin_width) * bin_width
bins = np.arange(lon_min, lon_max + bin_width, bin_width)
bin_centers = 0.5 * (bins[:-1] + bins[1:])
bin_idx = np.digitize(lons, bins) - 1
# -----------------------
# Bin-averaged SF6
# -----------------------
dye_binned = np.full(len(bin_centers), np.nan)
for i in range(len(bin_centers)):
in_bin = bin_idx == i
if np.any(in_bin):
dye_binned[i] = np.nanmean(dye_values[in_bin])
valid = np.isfinite(dye_binned)
lon_valid = bin_centers[valid]
dye_valid = dye_binned[valid]
if len(lon_valid) == 0:
continue
# -----------------------
# Compute mass-weighted median longitude
# -----------------------
weights = dye_valid
sort_idx = np.argsort(lon_valid)
lon_sorted = lon_valid[sort_idx]
w_sorted = weights[sort_idx]
cumsum = np.cumsum(w_sorted)
total = cumsum[-1]
lon_median = lon_sorted[np.searchsorted(cumsum, 0.5 * total)]
# -----------------------
# Plot Main Line (Top Panel)
# -----------------------
line, = ax1.plot(
lon_valid,
dye_valid,
'-',
linewidth=2,
label=f'Day {day + 1}'
)
color = line.get_color()
# -----------------------
# Plot Median vertical lines in both panels
# -----------------------
# Dotted line in main plot
#ax1.axvline(lon_median, linestyle=':', linewidth=1.5, color=color, alpha=0.6)
# Dashed line in the empty box
ax2.axvline(lon_median, linestyle='--', linewidth=1.2, color=color, alpha=0.8)
# -----------------------
# Add labels for the medians in the second plot
# -----------------------
# Stagger y-position so labels don't overlap if longitudes are close
# y_pos = [0.8, 0.5, 0.2][day % 3]
# ax2.text(
# lon_median, y_pos, f'D{day+1}',
# color=color, fontweight='bold',
# ha='center', va='center', transform=ax2.get_xaxis_transform()
#)
# -----------------------
# Final plot formatting
# -----------------------
# Formatting Top Plot (ax1)
ax1.set_ylabel('SF6 (fmol/L)')
ax1.set_title('Observed SF6 vs Longitude (Days 1–7)')
ax1.legend(title='Day', fontsize='small', loc='upper right')
ax1.grid(True, which='both', linestyle='--', alpha=0.5)
ax1.set_ylim([0, 3000])
# Formatting Bottom Plot (ax2 - The Empty Box)
ax2.set_xlabel('Longitude')
ax2.set_ylabel('') # Hide ylabel
ax2.set_yticks([]) # Remove y-ticks
ax2.set_yticklabels([]) # Remove y-tick labels
ax2.grid(True, axis='x', linestyle='--', alpha=0.5)
# Panel label a)
ax1.text(
0.01, 0.98, "a)",
transform=ax1.transAxes,
fontsize=14,
fontweight="bold",
va="top",
ha="left"
)
for ax in [ax1, ax2]:
ax.axvline(mouth_lon, color='grey', linewidth=3,linestyle='--', alpha=0.6, zorder=0)
for ax in [ax1, ax2]:
ax.axvline(inj_lon, color='grey', linewidth=3, alpha=0.6, zorder=0)
# Tighten layout and close the gap between subplots
plt.subplots_adjust(hspace=0.08)
plt.show()
